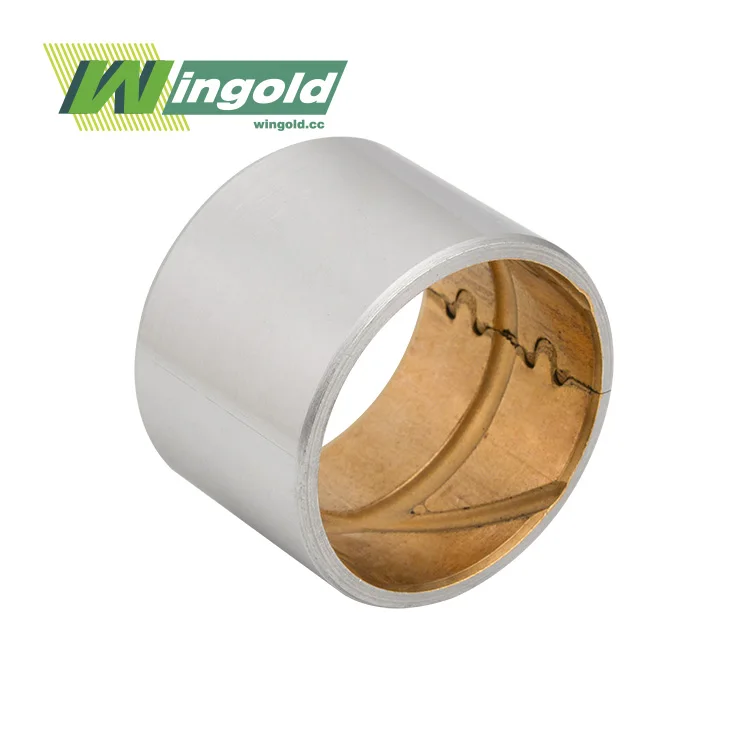

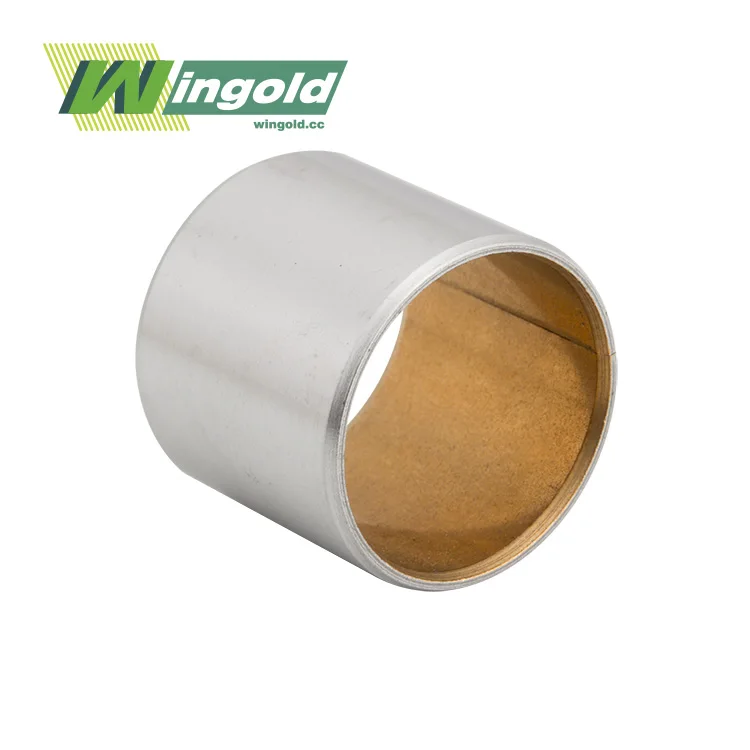

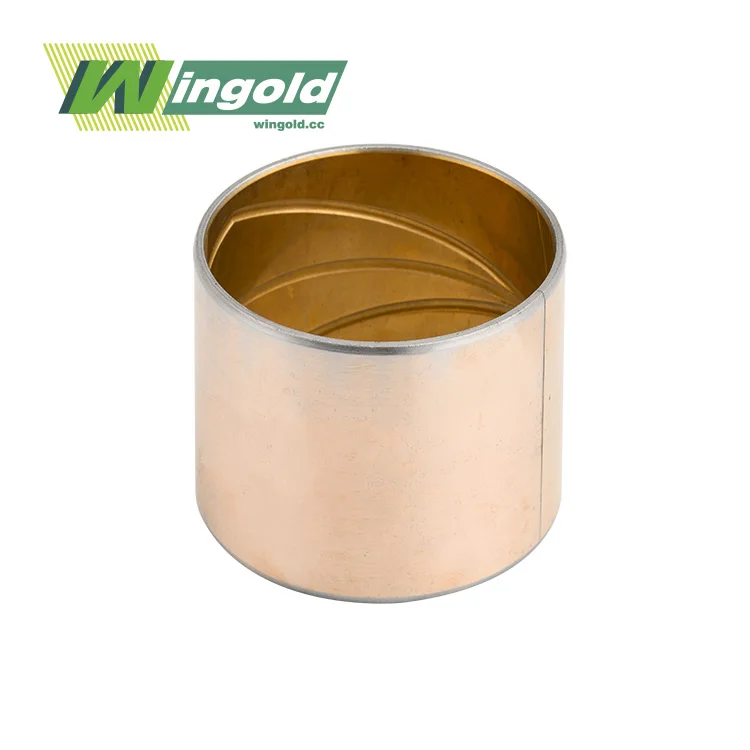

Bimetallic Self-Lubricating Bearing

WGB-1 oil-free lubricated bearing is a sliding bearing made of steel plate as the base, sintered spherical bronze powder in the middle, and rolled with a mixture of polytetrafluoroethylene (PTFE) and lead on the surface. It has the characteristics of small friction coefficient, good wear resistance, corrosion resistance, and oil-free lubrication. The use of this product can reduce costs, reduce mechanical volume, avoid shaft biting, and reduce mechanical noise. The product has been widely used in the sliding parts of various machines, such as printing machines, elevators, textile machines, tobacco machines, fitness equipment, hydraulic transport vehicles, micromotors, solenoid valves, automobiles, motorcycles, and agricultural and forestry machinery.

Structure1.Steel back --sintered porous bronze powder- modified polyformaldehyde (POM)2.With oil identations Technical ParameterMax load pressure: 70N/mm² Friction Coef. μ: 0.05-0.25Applicable temperature : -40℃-130℃ Max allowable PV value dry: 22N/mm²·m/sMax sliding speed: 2.5m/s

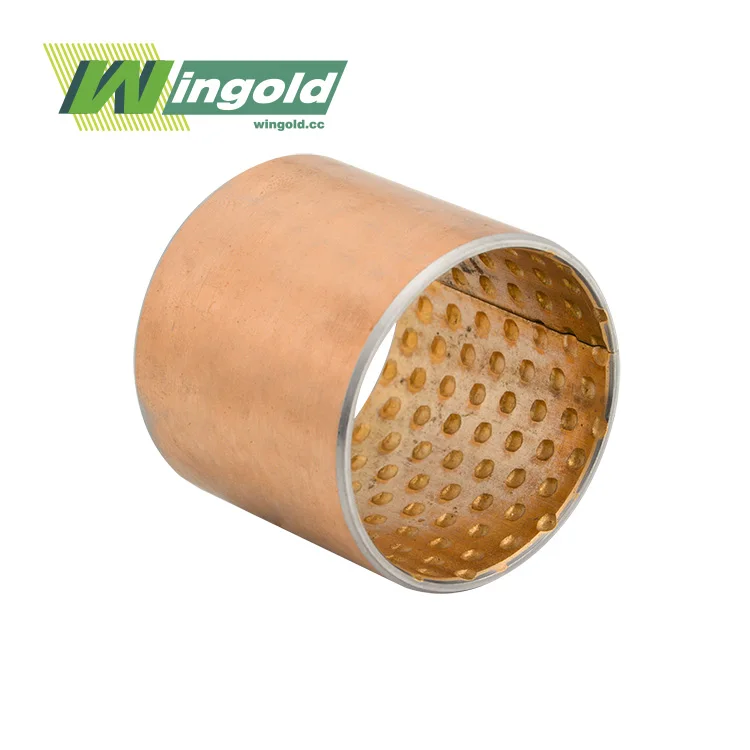

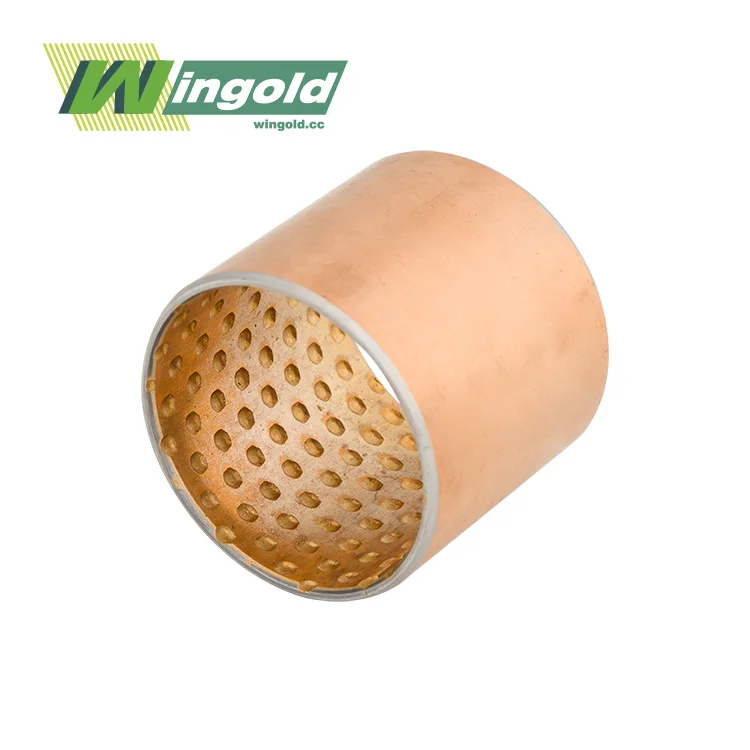

Structure: High-density copper alloy base – roll with diamond or hemispherical oil identationsFeature1.High density2.High load capacity3.Good wear resistance4.Long service life,5.Smaller size and reduce the cost, traditional casting copper bushing can be replaced
