Benefits of Custom PTFE Washers in Machinery Design

In the world of machinery creation, each part is very important for making sure the machine works well, efficiently, and lasts a long time. Custom PTFE washers have become a game-changer among these parts because they offer special advantages that make machinery design much better in many different industries. This piece talks about the benefits of using custom PTFE washers in machinery designs and how they can make your engineering projects more advanced.

​​​​​​​

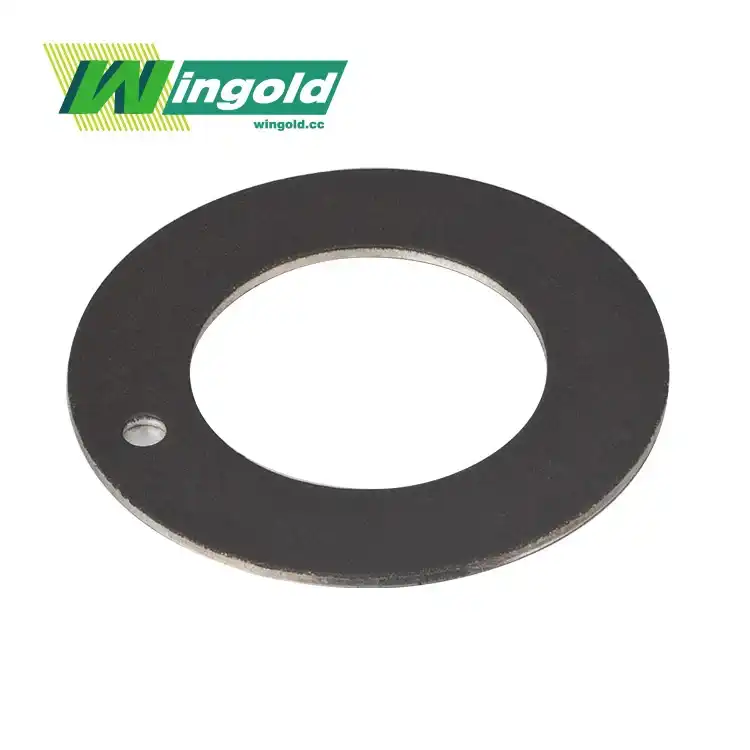

Understanding Custom PTFE Washers

Polytetrafluoroethylene, or PTFE, is a man-made fluoropolymer that is famous for having great qualities. Custom PTFE nuts are parts that are carefully designed to fit the needs of a particular piece of machinery. These washers take advantage of the good things about PTFE while also being specially made to fit the needs of each application.

Composition and Properties of PTFE

The molecules that make up PTFE are strong and solid because they are made up of carbon and fluorine atoms. Custom PTFE washers have amazing qualities thanks to this composition:

• Low friction coefficient (0.05 - 0.10)
• High temperature resistance (-260°C to +260°C)
• Chemical inertness
• Excellent electrical insulation
• Non-stick surface

Because of these qualities, custom PTFE washers are perfect for many machinery uses and work better than other materials in tough conditions.

Customization Options for PTFE Washers

Custom PTFE washers offer extensive customization possibilities to suit specific machinery requirements:

• Size Range: Inner diameters from 3mm to 1000mm
• Thickness: 0.1mm to 100mm
• Shape: Flat, thrust, specialized designs
• Material Composition: Virgin PTFE or filled PTFE with additives
• Color: Natural white or custom colors

Engineers can make custom PTFE washers that fit their machines perfectly because of this flexibility. This improves total performance and durability.

Key Benefits of Custom PTFE Washers in Machinery Design

Incorporating custom PTFE washers into machinery design offers numerous advantages that contribute to improved performance, durability, and cost-effectiveness.

Enhanced Wear Resistance and Longevity

Custom PTFE washers exhibit exceptional wear resistance, significantly extending the lifespan of machinery components. The low friction coefficient of PTFE reduces abrasion and material loss, even under high loads and speeds. This property is particularly beneficial in applications with frequent movement or vibration, where traditional washers might wear out quickly.

By integrating custom PTFE washers, machinery designers can:

• Reduce maintenance frequency and costs
• Minimize downtime for repairs and replacements
• Improve overall machinery reliability and performance

The longevity of custom PTFE washers translates to increased productivity and reduced long-term operational costs for machinery owners.

Superior Chemical Resistance

One of the standout features of custom PTFE washers is their exceptional chemical resistance. PTFE is inert to almost all chemicals, making it ideal for machinery operating in corrosive environments or handling aggressive fluids. This property ensures that custom PTFE washers maintain their integrity and performance even when exposed to harsh chemicals that would degrade conventional washer materials.

The chemical resistance of custom PTFE washers offers several advantages:

• Prevents chemical attacks that could compromise machinery integrity
• Eliminates the need for frequent washer replacements in corrosive environments
• Ensures consistent performance across a wide range of chemical exposures
• Reduces the risk of contamination in sensitive processes

These benefits make custom PTFE washers particularly valuable in industries such as chemical processing, pharmaceuticals, and food production, where chemical compatibility is crucial.

Improved Thermal Management

Custom PTFE washers excel in managing thermal challenges in machinery design. With an operational temperature range of -260°C to +260°C, these washers maintain their properties and performance across extreme temperature conditions. This wide temperature range makes custom PTFE washers suitable for diverse applications, from cryogenic equipment to high-temperature industrial processes.

The thermal management benefits of custom PTFE washers include:

• Consistent performance across wide temperature fluctuations
• Reduced thermal expansion issues in machinery components
• Enhanced reliability in temperature-sensitive applications
• Improved safety in high-temperature environments

By incorporating custom PTFE washers, machinery designers can create more robust and versatile systems capable of operating efficiently in challenging thermal conditions.

Applications of Custom PTFE Washers in Various Industries

The unique properties of custom PTFE washers make them valuable across a wide range of industries and applications.

Automotive and Aerospace Engineering

In the automotive and aerospace sectors, custom PTFE washers play a crucial role in enhancing the performance and reliability of various components:

• Engine seals and gaskets
• Transmission systems
• Fuel system components
• Hydraulic and pneumatic systems
• Electrical insulation in avionics

The low friction, chemical resistance, and high-temperature tolerance of custom PTFE washers and PTFE sealing washers contribute to improved fuel efficiency, reduced wear, and enhanced safety in these demanding applications.

Chemical and Pharmaceutical Processing

The chemical inertness and excellent sealing properties of custom PTFE washers make them indispensable in chemical and pharmaceutical processing equipment:

• Pump and valve seals
• Reactor vessel components
• Filtration systems
• Agitator shaft seals
• Sterile processing equipment

Custom PTFE washers ensure the integrity of processes, prevent contamination, and withstand aggressive chemicals, contributing to the production of high-quality, safe products.

Food and Beverage Manufacturing

In the food and beverage industry, custom PTFE washers offer several advantages:

• Compliance with food-grade regulations
• Resistance to cleaning agents and sanitizers
• Non-stick properties to prevent food buildup
• Suitability for high-temperature processing
• Excellent sealing in bottling and packaging equipment

These properties make custom PTFE washers ideal for maintaining hygiene standards and ensuring efficient, contamination-free production processes in food and beverage manufacturing.

Choosing the Right Custom PTFE Washers for Your Application

Selecting the appropriate custom PTFE washers for your machinery design requires careful consideration of several factors:

Factors to Consider in PTFE Washer Selection

When choosing custom PTFE washers, consider the following aspects:

• Operating temperature range
• Chemical exposure
• Load-bearing requirements
• Dimensional constraints
• Friction and wear considerations
• Electrical insulation needs
• Regulatory compliance (e.g., FDA, REACH)

By giving these things some careful thought, you can be sure that the custom PTFE washers you choose will perfectly fit the needs of your application and last for a long time. Some important things to think about are the type of material, its thickness, any size or shape limits, and how well it works with other parts and the area in which it will be used, including temperature changes, chemical exposure, and mechanical stress.

Choosing nuts that meet these criteria will help keep your tools or gear working well and preventing early failure. They will also reduce friction and wear. By giving these factors careful thought, you can choose washers that not only work well in tough situations but also give reliable, long-lasting service, which protects your equipment and makes your business run more smoothly overall.

Collaboration with PTFE Washer Manufacturers

Working closely with PTFE washer makers with a lot of experience, like Wingold Bearing Co., Ltd., can make the decision process a lot better. These professionals can give you useful advice and suggestions based on your unique needs. They can help with:

• Material selection (virgin PTFE vs. filled PTFE)
• Optimizing washer design for your application
• Prototyping and testing
• Ensuring compliance with industry standards
• Providing technical support throughout the design process

When you create and make custom PTFE washers for your tools and equipment, you will get the best results if you work with people who know a lot about them. These experts know a lot about the qualities of materials that are important for high-performance uses, such as their low friction coefficients, chemical resistance, high-temperature tolerance, and great dimensional stability. Talking to makers or experts with a lot of knowledge can help you choose the best PTFE mixture, thickness, and size for your purpose.

Experts can also give you advice on standards, surface finishes, and how well your washers will work with other parts, so they always do their job even in tough situations. Using their knowledge lowers the chance of premature wear, deformation, or chemical breakdown. It also makes your tools more effective, last longer, and be safer. In the end, working with experts in PTFE washers helps you make solutions that are unique and meet both technical and operating needs.

Conclusion

Custom PTFE washers have many advantages in machinery design, such as better heat management, increased wear protection, and chemical compatibility. Because they can be changed and adjusted to fit different needs, they are very useful in many industries and make machines work better, last longer, and be more efficient. Engineers can make their tools much more reliable and effective by carefully choosing and combining custom PTFE washers. This can lead to higher productivity and lower operating costs.

FAQ

What makes custom PTFE washers different from standard washers?

Custom PTFE washers are tailored to specific application needs, offering unique properties like low friction, chemical resistance, and high-temperature tolerance.

Can custom PTFE washers be used in high-pressure applications?

Yes, with proper design and material selection, custom PTFE washers can perform well in high-pressure environments.

Are custom PTFE washers environmentally friendly?

PTFE is inert and non-toxic, making it environmentally friendly. However, its production process requires careful management.

Elevate Your Machinery with Wingold's Custom PTFE Washers

At Wingold Bearing Co., Ltd., we specialize in manufacturing high-quality custom PTFE washers tailored to your specific machinery needs. Our advanced production techniques, extensive industry experience, and commitment to excellence make us the go-to choice for precision-engineered PTFE components. From automotive to food processing, our custom PTFE washers enhance performance across industries. Experience the Wingold difference in your machinery design. Contact us at info@wingold.cc to discuss your custom PTFE washer requirements and elevate your machinery performance today.
