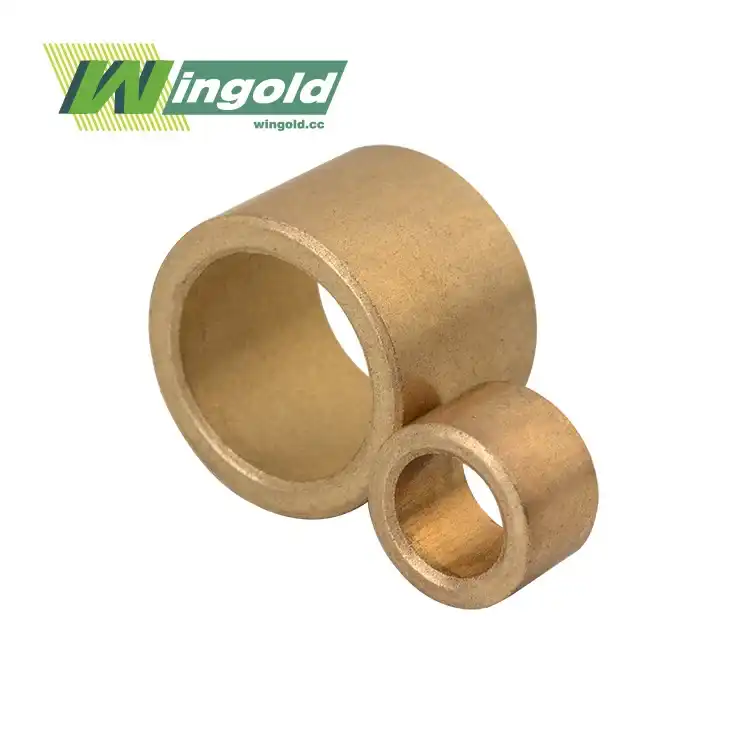

Understanding Oil Impregnated Sintered Bronze Technology
Oil-soaked sintered brass bushings are a big step forward in bearing technology. A complicated method that blends metals and fluid science is used to make these parts. In the end, they made a bearing that works better in a lot of different situations.
The Manufacturing Process
There are several important steps that must be taken to make oil-impregnated sintered brass bushings. First, the bronze powder is pressed into the shape that is wanted. The powder is then heated to very high temperatures and sintering, which makes a hollow structure. After that, a carefully made oil is poured into this porous metal framework. The oil fills the holes that are linked to each other, making a part that can lubricate itself. Because of this special way of making things, the bearing has 18–28% oil by volume. The holes of the solid metal material hold the oil, ready to be used as a lubricant when needed. There are a number of benefits to this new way of designing bearings over standard ones.
Material Properties and Performance Characteristics

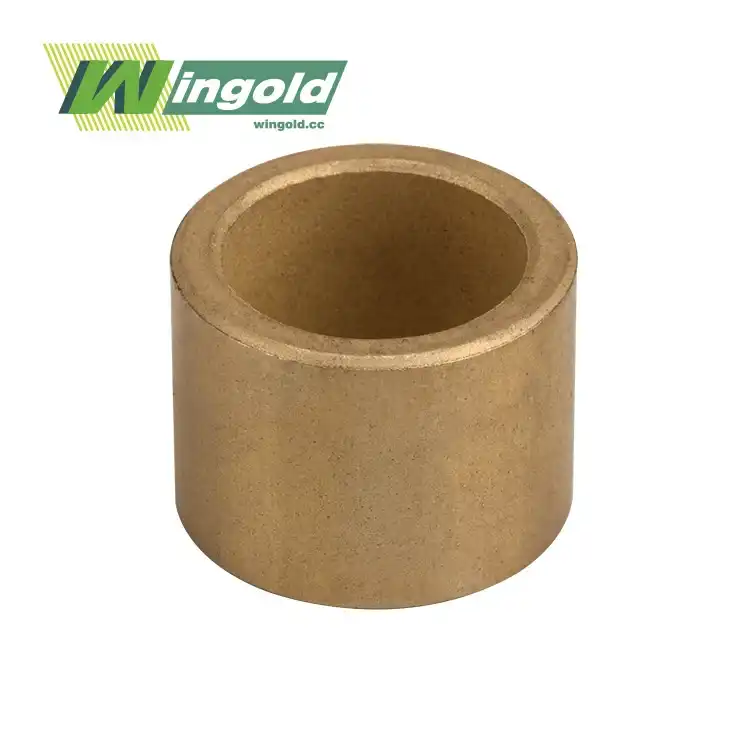

When oil is added to solid brass bushings, they have special qualities that let them be used in many situations. Sintered brass, which is the main material, is very strong and doesn't break down easily. When oil impregnation is added, these qualities get even better, making a bearing with great performance features. The temperature range that these bushings work well in is usually between -20°C and +110°C. A highest PV number (pressure-velocity limit) of 1.8 N/mm²·m/s shows that they can handle large loads and speeds. The friction rate of these bearings is very low, ranging from 0.03 to 0.08.
This makes them very smooth to use and saves energy. ISO 2768 m standards are followed by the measurement accuracy of oil impregnated sintered bronze bushings. This makes sure that the production process is consistent and accurate. The hardness of these bushings is between 60 and 75 HB, which is a good range for strength and flexibility. This means that they can respond to joining surfaces that are slightly out of line or have other flaws.
Self-Lubricating Mechanism
One thing that makes oil-impregnated sintered bronze bushings stand out is that they can lubricate themselves. As the bearing moves and is under pressure, a small amount of oil comes out of the holes and onto the surface of the bearing. By putting a small film of oil between the nut and the shaft, this stops wear and friction. The oil is taken back into the holes of the powdered brass as the bearing cools down or the load is lessened. The bearing stays oiled throughout its working life without the need for external maintenance systems because of this constant cycle of oil release and reabsorption.
Advantages of Oil Impregnated Bronze Bushings
There are many good things about oil-impregnated sintered bronze bushings that make them a good choice for many engineering uses. These benefits come from the way they are made and the fact that they can lubricate themselves.
Maintenance-Free Operation
One of the best things about oil-impregnated sintered brass bushings is that they don't need to be oiled from the outside. Because the system lubricates itself, it doesn't need to be cleaning or oiling on a regular basis. This function is especially helpful in situations where maintenance is hard to get to or where the system needs to keep running all the time. Because these joints don't need to be maintained, they not only cut down on running costs but also on downtime. In fields where equipment dependability is very important, like aircraft or car making, this can lead to big savings on costs and higher output.
Extended Service Life
Sintered brass bushings that have been coated with oil tend to last longer than regular bearings. Continuous greasing from the oil-soaked structure keeps the nut and fitting surface from wearing down too quickly. Consequently, the rate of decline slows down, and the component lasts longer overall. Because these bushings last a long time, they are perfect for situations where replacing them often would be hard to do or cost a lot of money. Because oil-impregnated sintered bronze bushings last a long time, they can save you a lot of money over time on repairs and replacements for big machinery or installations that are far away.
Environmental Benefits
Oil-impregnated sintered bronze bushings are good for the environment because they can lubricate themselves. These bushings lower the chance of oil leaks and spills that are bad for the environment because they don't need to be oiled from the outside. This is especially important in businesses that have strict rules about the climate or where bearings are out in the weather. Also, because there is less need for lubricants, less leftover oil is made over the life of the equipment. This not only has less of an effect on the earth but also makes it easier for businesses to deal with trash.
Cost-Effectiveness
Oil-impregnated sintered bronze bushings are good for the environment because they can lubricate themselves. These bushings lower the chance of oil leaks and spills that are bad for the environment because they don't need to be oiled from the outside. This is especially important in businesses that have strict rules about the climate or where bearings are out in the weather. Also, because there is less need for lubricants, less leftover oil is made over the life of the equipment. This not only has less of an effect on the earth but also makes it easier for businesses to deal with trash.
Applications of Oil Impregnated Bronze Bushings
Oil impregnated sintered bronze bushings find use in a wide array of industries and applications. Their unique properties make them suitable for diverse operating conditions and requirements.
Automotive Industry
Oil-soaked solid brass bushings are used in a lot of different parts in the car industry. You can find them in pedal units, steering systems, and suspension parts. Because these bushings are self-lubricating, they are perfect for parts that are hard to get to for normal upkeep. One example is shock dampers, which use oil-soaked solid brass joints for smooth operation and long-term dependability. They are a popular choice among car experts because they can handle high loads and shocks while still working properly.
Industrial Machinery

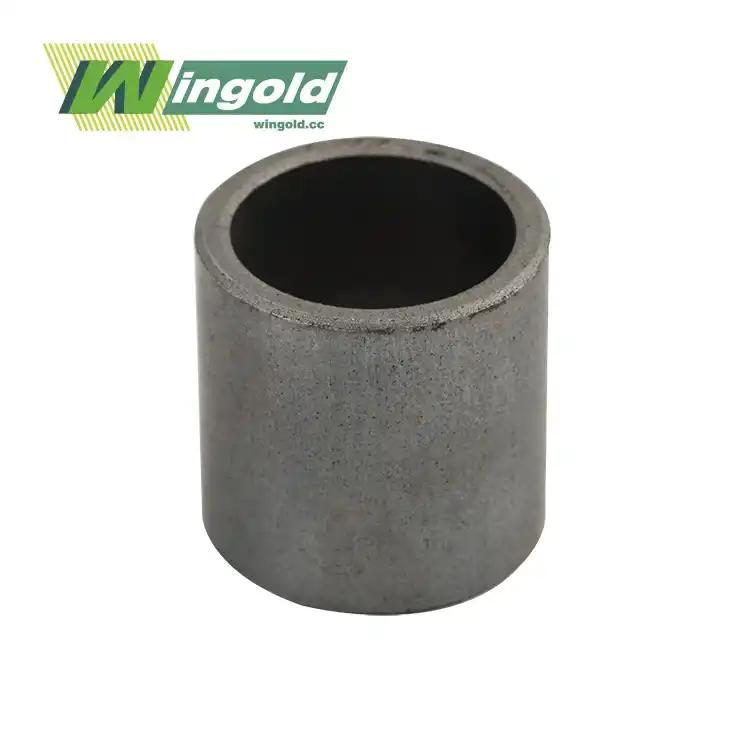

In a lot of industrial gear, oil-soaked polished brass bushings are used, including sintered iron bush components. They are especially useful in technology that works all the time or in difficult conditions. Conveyor systems, printing presses, and packing machines are all examples of uses. As a part of textile machinery, these bushings are often found in wheels and rollers that move quickly. Because they don't have much friction and can work without extra oil, they are perfect for the tough conditions of cloth production.
Agricultural Equipment
Oil-impregnated solid brass bushings are useful in agriculture because they last a long time and don't need much upkeep. A lot of mowers, harvesters, and watering systems use them. These bushings can handle the rough conditions that are common in farming settings, such as dust, water, and changes in temperature. Oil-impregnated sintered bronze joints work well in tools like plows and mowers, even when they are working hard and under heavy loads. Because they lubricate themselves, they are especially useful for tools that might not get regular repair during busy farming seasons.
Aerospace and Defense
Oil-impregnated sintered bronze bushings are used in many ways in the aircraft and military fields. These joints are used in the landing gear, control surfaces, and hydraulic systems of airplanes. Because they work effectively across a wide temperature range and can handle high loads, they are good for the tough needs of aircraft uses. These joints work well for a long time in harsh settings and are used in military cars and tools. Their ability to work without external grease and resistance to contamination make them very useful in field operations where upkeep may be hard to do.
Marine Applications
In naval settings, oil-soaked solid brass joints are used a lot. They are used in many systems on ships, such as winches, doors, and turning devices. Marine uses are a good fit for these bushings because they are made of bronze, which doesn't rust, and they actually keep themselves oiled. Oil-impregnated sintered bronze bushings work reliably even when they are buried in water in underwater equipment and offshore installations. In these tough conditions, the fact that they can work without additional greasing is especially helpful.
Conclusion
Oil impregnated sintered bronze bushings represent a significant advancement in bearing technology. Their unique combination of self-lubrication, durability, and low maintenance requirements makes them an excellent choice for a wide range of applications. From automotive components to industrial machinery, these bushings offer reliable performance and cost-effective operation. As engineers and designers continue to seek ways to improve efficiency and reduce maintenance needs, oil impregnated sintered bronze bushings are likely to play an increasingly important role in various industries.
At Wingold Bearing, we specialize in providing high-quality oil impregnated sintered bronze bushings tailored to your specific needs. Our expertise in sliding bearing solutions, combined with our state-of-the-art manufacturing facilities, ensures that you receive products that meet the highest standards of performance and reliability. Whether you're looking for standard bushings or custom solutions, our team is ready to assist you.
Frequently Asked Questions
What is the typical lifespan of oil impregnated sintered bronze bushings?
The lifespan varies depending on the application, but these bushings often last several years or even decades under proper operating conditions.
Can oil impregnated sintered bronze bushings be used in high-temperature environments?
Yes, they can typically operate in temperatures up to 110°C, making them suitable for many high-temperature applications.
Are these bushings suitable for food processing equipment?
Yes, oil impregnated sintered bronze bushings can be used in food processing equipment, especially when food-grade lubricants are used in the impregnation process.
