What is the difference between DX and DU bushes?

DX and DU bushes are both types of self-lubricating bearings, but they have distinct differences in their construction and applications. DU bushes consist of a steel backing, porous bronze layer, and PTFE coating, offering excellent friction reduction and wear resistance. On the other hand, DX bushes feature a steel backing with a porous bronze layer impregnated with lead, providing enhanced load-bearing capacity and thermal conductivity. While DU bushes excel in dry-running conditions, DX bushes are better suited for applications requiring higher load capacity and improved heat dissipation. The choice between DX and flanged DU bushes depends on specific application requirements, such as load, speed, and operating environment.

​​​​​​​

Grasping the Structure and Benefits of Flanged DU Bushes

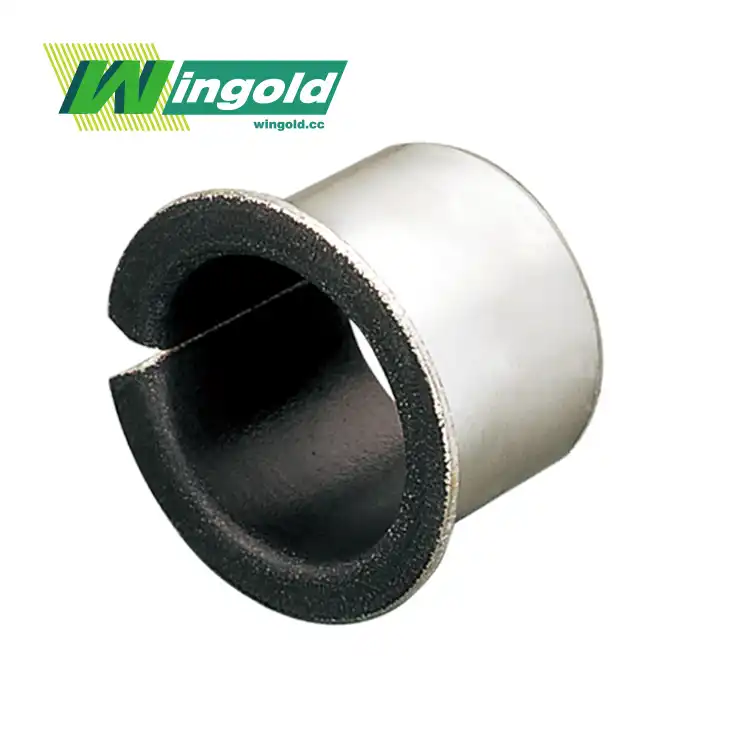

Flanged DU bushes are a specialized type of self-lubricating bearing that combines the advantages of DU bushes with a convenient flange design. These bushes are engineered to provide exceptional performance in a wide range of applications, making them a popular choice across various industries.

Composition and Design

The structure of flanged DU bushes is carefully engineered to optimize their performance. These bushes consist of three primary layers:

- Steel Backing: The outermost layer is made of steel, which provides structural integrity and ensures proper positioning during assembly. This layer also helps distribute pressure evenly across the bearing surface.

- Porous Bronze: The middle layer consists of porous bronze, which serves as a connection between the steel backing and the PTFE layer. This layer also contributes to friction reduction and helps maintain the overall structure of the bush.

- PTFE Layer: The innermost layer is composed of polytetrafluoroethylene (PTFE), a high-performance plastic known for its low friction properties. This layer is responsible for the bush's self-lubricating characteristics and exceptional wear resistance.

The flange design of these bushes adds an extra dimension of functionality. The flange provides a larger surface area for load distribution and simplifies the installation process by acting as a built-in thrust washer.

Key Features and Advantages

Flanged DU bushes offer a multitude of benefits that make them an attractive option for various applications:

- Self-Lubrication: The PTFE layer eliminates the need for external lubrication, reducing maintenance requirements and extending the lifespan of the bearing.

- Low Noise Operation: The smooth surface of the PTFE layer contributes to quiet operation, making these bushes ideal for noise-sensitive applications.

- Compact Design: The thin-walled construction of flanged DU bushes allows for space-saving designs in machinery and equipment.

- Versatility: These bushes can operate effectively across a wide temperature range, from -200°C to +280°C, making them suitable for diverse environmental conditions.

- High Load Capacity: Despite their compact size, flanged DU bushes can withstand loads of up to 250 N/mm², making them suitable for heavy-duty applications.

- Excellent Wear Resistance: The combination of materials used in flanged DU bushes results in exceptional durability and long-term wear resistance.

Applications and Industries Utilizing Flanged DU Bushes

The unique properties of flanged DU bushes make them valuable components in a wide array of industries and applications. Their versatility and performance characteristics have led to their adoption in numerous sectors, ranging from automotive to aerospace.

Automotive Industry

In the automotive sector, flanged DU bushes play a crucial role in various components:

- Suspension Systems: These bushes are used in control arms, shock absorbers, and stabilizer bars to reduce friction and improve ride quality.

- Steering Mechanisms: Flanged DU bushes are employed in steering columns and rack-and-pinion systems to ensure smooth and precise steering control.

- Pedal Assemblies: The self-lubricating properties of these bushes make them ideal for use in brake and clutch pedal pivot points.

Industrial Machinery

The industrial sector relies heavily on flanged DU bushes for various applications:

- Hydraulic and Pneumatic Systems: These bushes are used in cylinders and valves to reduce friction and improve overall system efficiency.

- Conveyor Systems: Flanged DU bushes are employed in rollers and pulleys to ensure smooth operation and minimize maintenance requirements.

- Robotics: The low friction and high precision of these bushes make them valuable in robotic arm joints and actuators.

Aerospace and Aviation

The aerospace industry benefits from the high-performance characteristics of flanged DU bushes:

- Landing Gear: These bushes are used in landing gear mechanisms to withstand high loads and provide smooth operation during takeoff and landing.

- Control Surfaces: Flanged DU bushes are employed in ailerons, flaps, and rudders to ensure precise control and reduce maintenance needs.

- Cargo Loading Systems: The self-lubricating properties of these bushes make them ideal for use in aircraft cargo loading mechanisms.

Maintenance and Longevity of Flanged DU Bushes

While flanged DU bushes are designed for low-maintenance operation, proper care and attention can significantly extend their lifespan and maintain optimal performance. Understanding the factors that affect their longevity and implementing appropriate maintenance practices is crucial for maximizing the value of these components.

Factors Affecting Lifespan

Several factors can influence the longevity of flanged DU bushes:

- Operating Conditions: Extreme temperatures, high loads, and excessive speeds can accelerate wear and reduce the lifespan of the bushes.

- Contamination: Exposure to dirt, dust, and other abrasive particles can damage the PTFE layer and compromise the bush's performance.

- Misalignment: Improper installation or alignment can lead to uneven wear and premature failure of the bush.

- Chemical Exposure: Certain chemicals can degrade the PTFE layer or affect the integrity of the bronze and steel components.

Maintenance Best Practices

To ensure the longevity and optimal performance of flanged DU bushes, consider the following maintenance practices:

- Regular Inspection: Periodically examine the bushes for signs of wear, contamination, or damage. Look for changes in clearance or unusual noises during operation.

- Cleaning: When possible, clean the surrounding area to prevent contamination from entering the bush. Use appropriate cleaning methods that won't damage the PTFE layer.

- Proper Installation: Ensure correct alignment and fit during installation to prevent uneven wear and premature failure.

- Environmental Protection: When feasible, use seals or protective covers to shield the bushes from harsh environmental conditions or contaminants.

- Load Management: Avoid exceeding the recommended load and speed limits to prevent accelerated wear and potential failure.

- Temperature Monitoring: Keep operating temperatures within the specified range (-200°C to +280°C) to maintain the integrity of the bush materials.

By implementing these maintenance practices, you can significantly extend the service life of flanged DU bushes and ensure they continue to provide optimal performance in your applications.

Conclusion

Flanged DU bushes represent a significant advancement in bearing technology, offering a unique combination of self-lubrication, wear resistance, and versatility. Their tri-layer structure, featuring a steel backing, porous bronze layer, and PTFE coating, provides exceptional performance across a wide range of applications and industries. From automotive suspensions to aerospace control surfaces, these bushes continue to prove their value in demanding environments.

As we've explored in this article, the key to maximizing the benefits of flanged DU bushes lies in understanding their structure, applications, and maintenance requirements. By selecting the appropriate bush for your specific needs and implementing proper care practices, you can ensure optimal performance and longevity.
