Understanding PTFE Lined Bushings and Their Noise-Reduction Properties
PTFE lined bushings are engineered to excel in noise reduction applications. The combination of a sturdy metal base and a low-friction PTFE lining creates a bearing that operates smoothly and quietly under various conditions. Let's delve into the characteristics that make these bushings effective noise reducers:
Composition and Structure

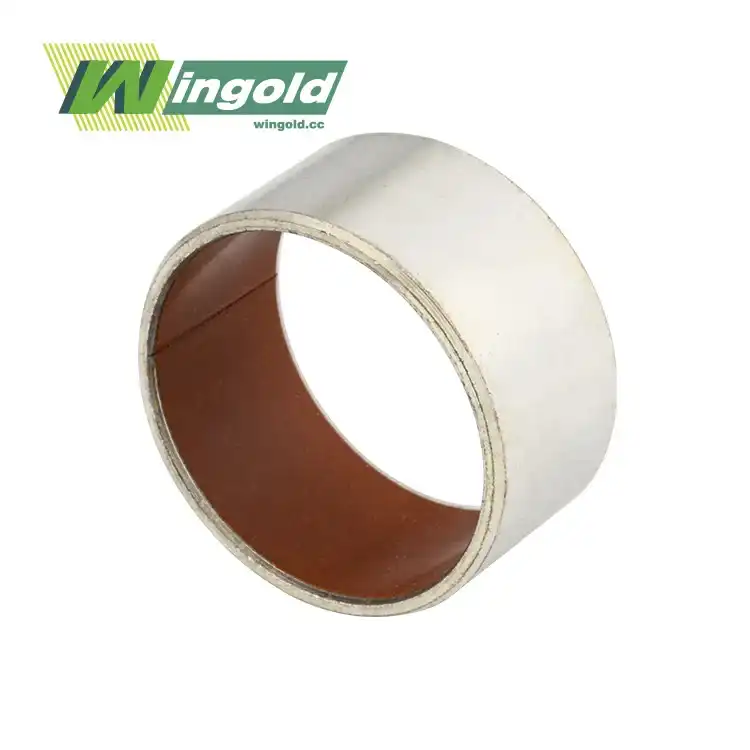

The structure of PTFE lined bushings is key to their noise-reducing capabilities. These bearings consist of a precisely machined metal base, typically made of bronze or steel, with a thin layer of PTFE bonded to the inner surface. This composite structure offers several advantages:
- The metal base provides strength and dimensional stability
- The PTFE lining offers excellent lubricating properties
- The combination results in a bearing with low friction and high wear resistance
The PTFE layer, typically ranging from 0.1mm to 0.3mm in thickness, is firmly adhered to the metal substrate. This ensures consistent performance throughout the bushing's service life, even under challenging conditions.
Low Friction Properties
One of the primary reasons PTFE-lined composite bushings excel at noise reduction is their remarkably low coefficient of friction. PTFE, known for its non-stick properties, exhibits a friction coefficient as low as 0.02 to 0.08. This low friction translates to several benefits in machinery operation:
- Reduced wear between moving parts
- Smoother motion with less vibration
- Minimized stick-slip effect, a common source of noise in machinery
The low friction properties of PTFE lined bushings contribute significantly to quieter operation in various mechanical systems. By reducing the energy lost to friction, these bearings not only reduce noise but also improve overall efficiency.
Vibration Dampening
PTFE lined bushings play a crucial role in vibration dampening, which is essential for noise reduction in machinery. The unique properties of PTFE allow these bushings to absorb and dissipate vibrational energy effectively. Here's how they contribute to vibration dampening:
- The PTFE layer acts as a cushion between moving parts
- The material's inherent flexibility allows it to deform slightly under load, absorbing shock and vibration
- The low friction surface reduces the transmission of vibrations between components
By dampening vibrations, PTFE lined bushings help prevent the propagation of noise through the mechanical system. This is particularly beneficial in applications such as automotive suspension systems, where reducing road noise and vibration is crucial for passenger comfort.
Applications of PTFE Lined Bushings in Noise-Sensitive Machinery
PTFE lined bushings find applications in a wide range of industries where noise reduction is a priority. Their unique properties make them ideal for use in machinery that requires quiet operation, precise movement, or both. Let's explore some key applications:
Automotive Industry
In the automotive sector, PTFE lined bushings play a crucial role in enhancing ride quality and reducing noise. Some common applications include:
- Suspension systems: PTFE lined bushings are used in shock absorbers and other suspension components to reduce vibration and noise transmission from the road to the vehicle cabin.
- Steering systems: These bushings help create smoother, quieter steering operation.
- Engine mounts: PTFE lined bushings can help isolate engine vibrations from the vehicle frame, reducing noise and improving comfort.
The use of PTFE lined bushings in these applications contributes to a quieter, more comfortable driving experience. Their ability to operate in both dry and lubricated conditions makes them versatile for various automotive uses.
Industrial Machinery
In industrial settings, noise reduction is often a critical factor for worker safety and environmental compliance. PTFE lined bushings are used in various types of industrial machinery, including:
- Hydraulic and pneumatic systems: These bushings can withstand high pressures while providing quiet operation in cylinders and actuators.
- Conveyor systems: PTFE lined bushings help reduce noise in rollers and bearings, contributing to quieter material handling operations.
- Packaging machinery: Precise, low-noise operation is crucial in packaging lines, where PTFE lined bushings can significantly reduce mechanical noise.
Owing to their durability and low maintenance requirements, PTFE plain bearings, including PTFE-lined bushings, are widely used in industrial applications where reliability and consistent performance are critical.
Precision Equipment
In precision equipment and scientific instruments, even small amounts of noise or vibration can be problematic. PTFE lined bushings are often used in these applications due to their excellent noise-reduction properties:
- Medical equipment: Devices such as MRI machines and surgical robots benefit from the quiet, precise operation provided by PTFE lined bushings.
- Laboratory instruments: Analytical equipment often requires vibration-free operation, making PTFE lined bushings an ideal choice.
- Optical systems: Cameras, telescopes, and other optical devices use these bushings to ensure smooth, silent movement of components.
The ability of PTFE lined bushings to operate without external lubrication is particularly valuable in clean room environments and other sensitive applications where contamination must be avoided.
Benefits and Considerations When Using PTFE Lined Bushings for Noise Reduction
While PTFE lined bushings offer significant advantages in noise reduction applications, it's important to consider both their benefits and potential limitations when designing or maintaining machinery. Let's examine the key factors to keep in mind:
Advantages of PTFE Lined Bushings
PTFE lined bushings offer numerous benefits that make them an excellent choice for noise reduction in machinery:
- Self-lubricating properties: The PTFE layer provides continuous lubrication, reducing the need for external lubricants and minimizing maintenance requirements.
- Wide temperature range: These bushings can operate effectively from -195°C to 280°C, making them suitable for diverse environmental conditions.
- Chemical resistance: PTFE is inert to most chemicals, allowing these bushings to be used in harsh or corrosive environments.
- Low stick-slip: The smooth operation of PTFE lined bushings helps prevent the jerky motion that can cause noise and wear in machinery.
- Longevity: With proper application, these bushings can provide extended service life, reducing the frequency of replacements and associated downtime.
These advantages make PTFE lined bushings a versatile and reliable choice for noise reduction across various industries and applications.
Design Considerations
When incorporating PTFE lined bushings into machinery for noise reduction, several design factors should be considered:
- Load capacity: While PTFE lined bushings can handle significant loads (up to 140N/mm²), it's crucial to ensure the chosen bushing is appropriate for the specific application's load requirements.
- Speed limitations: These bushings have a maximum sliding speed of 3m/s, which should be factored into the design of high-speed applications.
- PV value: The product of pressure and velocity (PV value) is a critical factor in bushing selection. For dry running conditions, the maximum allowable PV value is 3.8N/mm²·m/s, while in oil-lubricated applications, it can reach 50N/mm²·m/s.
- Dimensional considerations: PTFE lined bushings are available in a range of sizes, with inner diameters from 5mm to 300mm, wall thicknesses from 1mm to 5mm, and lengths from 5mm to 500mm. Proper sizing is essential for optimal performance.
- Environmental factors: While PTFE is highly resistant to many environmental factors, extreme conditions should be considered in the design phase.
Careful consideration of these factors ensures that PTFE lined bushings are applied effectively for maximum noise reduction and overall performance.
Maintenance and Longevity
One of the key advantages of PTFE lined bushings is their low maintenance requirements. However, to ensure optimal performance and longevity, some considerations should be kept in mind:
- Regular inspection: While PTFE lined bushings are designed for long-term use, periodic inspection can help identify any signs of wear or damage early.
- Cleanliness: Although PTFE is resistant to many contaminants, keeping the operating environment clean can extend the life of the bushings.
- Proper installation: Correct installation is crucial for the performance and longevity of PTFE lined bushings. Following manufacturer guidelines for installation and alignment is essential.
- Monitoring operating conditions: Ensuring that the bushings are used within their specified temperature, load, and speed ranges will help maximize their service life.
- Replacement planning: While PTFE lined bushings offer extended service life, planning for eventual replacement as part of regular maintenance schedules can prevent unexpected downtime.
By following these maintenance practices, the noise-reduction benefits of PTFE lined bushings can be sustained over an extended period, providing long-term value in machinery applications.
Conclusion
PTFE lined bushings represent a significant advancement in noise reduction technology for machinery. Their unique combination of a sturdy metal base and a low-friction PTFE lining makes them ideal for applications where quiet operation is crucial. From automotive suspension systems to precision medical equipment, these versatile components offer benefits that extend beyond noise reduction, including low maintenance requirements, wide temperature tolerance, and excellent wear resistance.
As machinery continues to evolve, the demand for quieter, more efficient operation is likely to increase. PTFE lined bushings are well-positioned to meet this demand, offering a reliable solution for engineers and designers looking to reduce noise and vibration in their products.
For those seeking high-quality PTFE lined bushings for their noise reduction needs, Wingold Bearing stands as a reputable manufacturer and supplier. With our extensive experience in sliding bearing solutions and commitment to customization, we can provide PTFE lined bushings tailored to your specific applications. To learn more about our products or to discuss your noise reduction requirements, please contact us at info@wingold.cc.
FAQ
What is the typical lifespan of a PTFE lined bushing?
The lifespan of a PTFE lined bushing can vary depending on the application and operating conditions. Under optimal conditions, these bushings can last for several years or even decades.
Can PTFE lined bushings be used in wet environments?
Yes, PTFE lined bushings perform well in wet environments due to PTFE's hydrophobic nature. They are often used in marine applications and other moisture-rich settings.
Are PTFE lined bushings suitable for high-temperature applications?
PTFE lined bushings can operate in temperatures ranging from -195°C to 280°C, making them suitable for many high-temperature applications. However, it's important to verify the specific temperature rating for your chosen bushing.
Do PTFE lined bushings require lubrication?
PTFE lined bushings are self-lubricating and generally do not require additional lubrication. This is one of their key advantages, reducing maintenance needs and the risk of contamination in sensitive environments.
