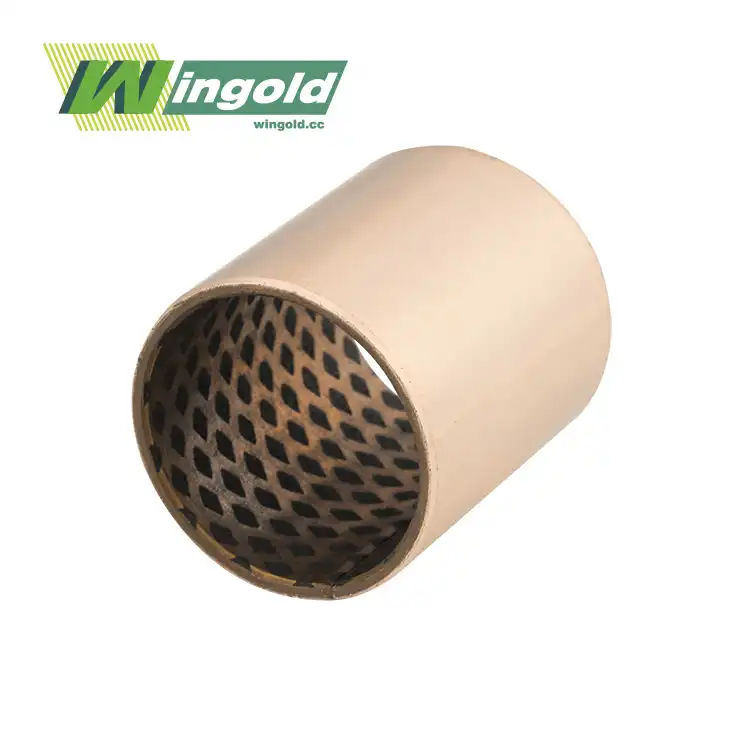

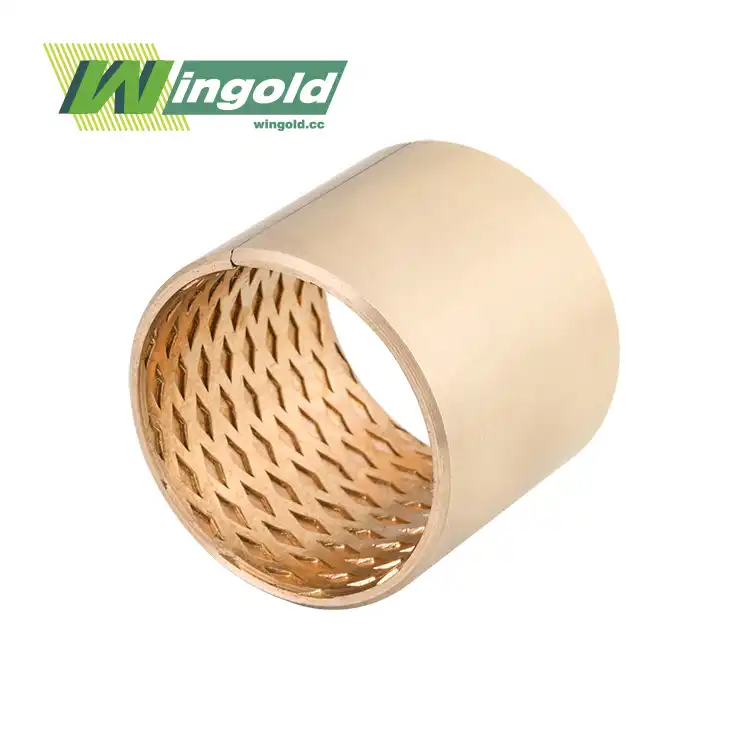

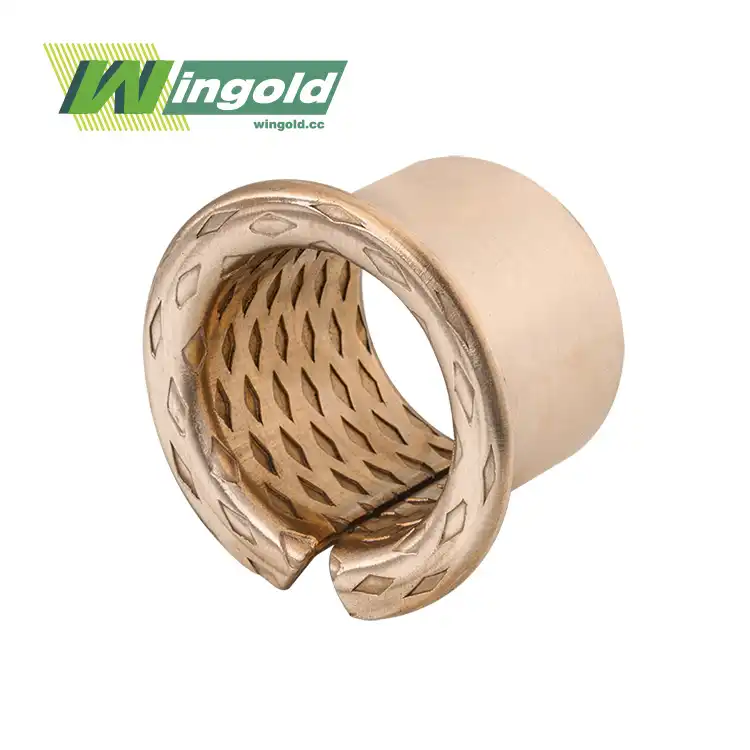

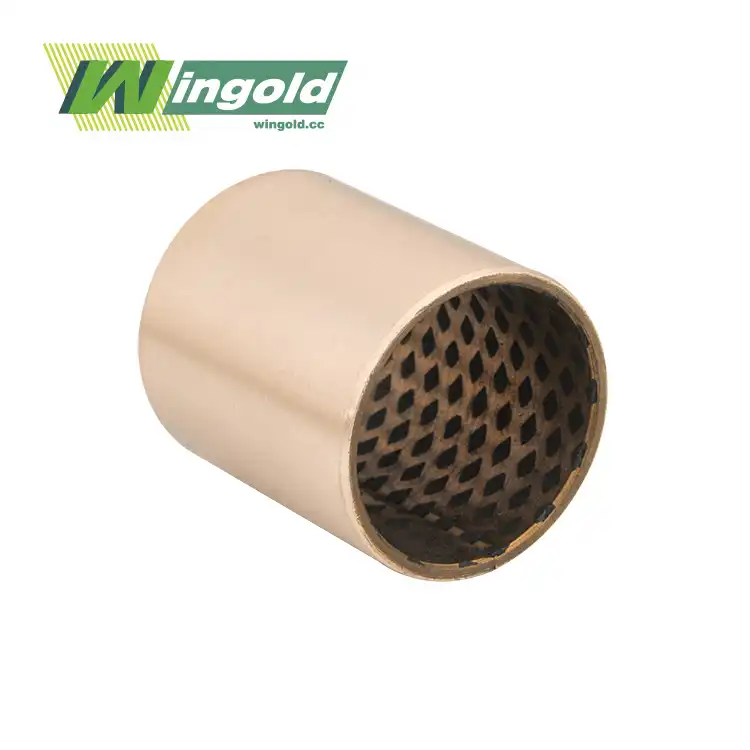

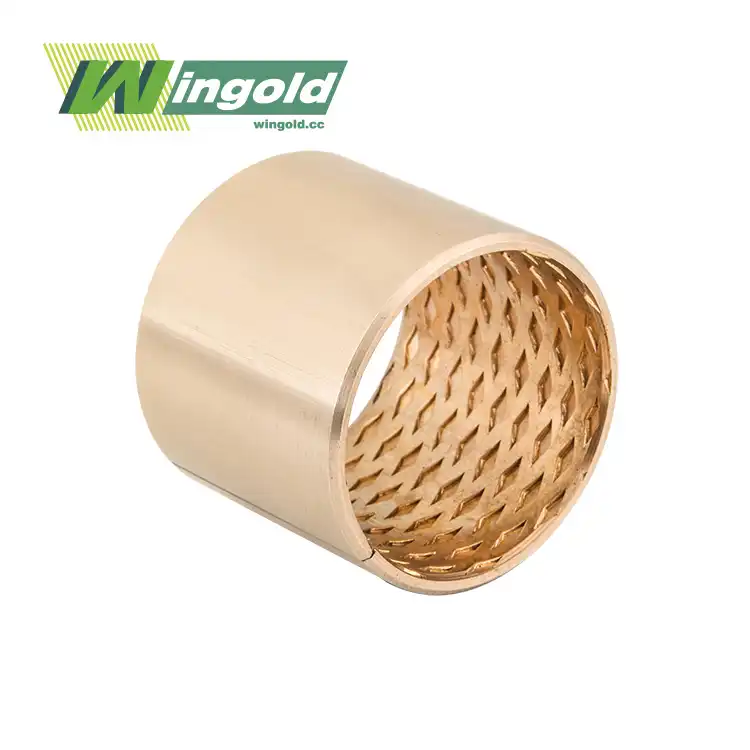

Bushing Brass Sleeve

Structure: High-density copper alloy base – roll with diamond or hemispherical oil indentationsFeature:High density; High load capacity; Good wear resistance; Long service life; Smaller size and reduced the cost, traditional casting copper bushing can be replacedApplication:Lifting machinery; Construction machinery; Automobile and tractor chassis; Machine tool industry; Mining machineryAvailability:Bearing shell; Flange bushing; Thrust washer; Cup bushing Technical ParameterMaterial: CuSn8P0.3 or CuSn6.5P0.1Hardness: HB90-120(standard)Hardness: HB120-150（hardened） Applicable temperature : -80℃-200℃Max load pressure: 75N/mm² Max sliding speed: 2.5m/s

Send Inquiry

Product Description

Jiashan Wingold Bearing Co., Ltd.: Your Premier Bushing Brass Sleeve Manufacturer

At Jiashan Wingold Bearing Co., Ltd., we take pride in being a leading bushing brass sleeve manufacturer and supplier. Our expertise in sliding bearing solutions, coupled with our commitment to quality and innovation, sets us apart. Our products offer unparalleled reliability, precision, and longevity, making us the go-to choice for discerning customers worldwide.

Product Description: Bushing Brass Sleeve

Our premium products are engineered to meet the highest industry standards, offering exceptional performance in various applications. These precision-crafted components are designed to reduce friction, withstand high loads, and provide smooth operation in challenging environments. Our products are the perfect solution for those seeking reliable, long-lasting bearing solutions that can significantly enhance the efficiency and lifespan of their machinery.

Specifications:

Parameter	Value
Material	High-quality brass alloy
Inner Diameter	10mm - 100mm
Outer Diameter	12mm - 120mm
Length	15mm - 200mm
Surface Finish	Precision-machined
Operating Temperature	-40°C to 150°C
Load Capacity	Up to 50 MPa

product-1-1

Why Choose Us?

Over 20 years of industry experience
State-of-the-art manufacturing facilities
Rigorous quality control processes
Customization capabilities to meet specific requirements
Competitive pricing without compromising on quality
Fast turnaround times and reliable delivery
Excellent customer support and technical assistance
Commitment to sustainable and eco-friendly practices

Material

Our products are crafted from high-grade brass alloys, carefully selected for their superior properties. The composition typically includes copper, zinc, and other elements that enhance performance characteristics. This material choice ensures excellent wear resistance, low friction, and good thermal conductivity, making our sleeves ideal for a wide range of applications.

Product Advantages

Durability: Our bushing brass sleeves are built to last, offering exceptional resistance to wear and corrosion. This translates to longer service life and reduced maintenance costs for your machinery.
Precision Engineering: Each sleeve is manufactured to tight tolerances, ensuring a perfect fit and optimal performance in your applications. This precision contributes to reduced vibration and improved overall system efficiency.
Self-Lubricating Properties: The unique composition of our brass alloy provides inherent lubrication properties, reducing the need for frequent maintenance and enhancing smooth operation.
Thermal Stability: Our sleeves maintain their dimensional stability across a wide temperature range, ensuring consistent performance in various operating conditions.
Cost-Effective: While delivering premium quality, our products offer excellent value for money. Their long service life and minimal maintenance requirements result in a lower total cost of ownership for your equipment.

Application Areas

Automotive Industry: Used in steering systems, suspension components, and transmission assemblies.
Aerospace: Critical components in landing gear, flight control systems, and hydraulic actuators.
Industrial Machinery: Essential in conveyor systems, printing presses, and packaging equipment.
Marine Applications: Utilized in propeller shafts, rudder bearings, and deck equipment.
Agricultural Equipment: Found in tractors, harvesters, and irrigation systems.
Construction Machinery: Used in excavators, cranes, and bulldozers.
Oil and Gas Industry: Critical components in pumps, valves, and drilling equipment.

Quality Control:

product-1-1

We implement rigorous quality control measures throughout our production process.

Factory related：

product-1-1

Provide suitable bearing products and supporting services according to the needs of different customers

Packaging and Transportation:

product-1-1

We ensure secure packaging and reliable shipping for all orders.

Shipping Samples:

product-1-1

Sample orders are available for testing and evaluation.

Qualification Certification:

product-1-1

We hold ISO 9001 certification for quality management.

Production process related：

product-1-1

Select appropriate raw materials to produce bearing products that meet technical requirements

Exhibitions:

product-1-1

We regularly participate in international trade shows to showcase our products.

FAQ

Q: What is the minimum order quantity for the Bushing Brass Sleeve？
A: Our minimum order quantity is typically 100 pieces, but we can be flexible depending on your specific needs.

Q: Can you provide custom sizes for the products?
A: Absolutely! We specialize in custom solutions and can manufacture sleeves to your exact specifications.

Q: What is the typical lead time for an order?
A: Standard sizes usually ship within 2-3 weeks, while custom orders may take 4-6 weeks, depending on complexity and quantity.

Q: Do you offer technical support for product selection?
A: Yes, our team of engineers is available to assist you in choosing the right product for your application.

Q: Are your products compliant with international standards?
A: Yes, our products meet or exceed relevant international standards, including ISO and ASTM specifications.

Contact Us

Ready to experience the superior quality of our bushing brass sleeves? Contact our friendly team today at info@wingold.cc. Let's discuss how we can provide the perfect sliding bearing solution for your needs!
