How are bushings self lubricating?

Self-lubricating bushings, especially bronze bushing self lubricating types, are designed wonders that consolidate tiny pores or stores filled with lubricant specifically into their structure. These bushings are regularly made from a bronze combination base impregnated with a strong grease-like graphite or PTFE. As the bushing works, the grinding and warmth produced cause the grease to gradually seep out of these pores, making a thin film between the bushing and the shaft. This nonstop release of lubricant ensures smooth operation and diminishes wear, killing the need for external lubrication and support. The self-lubricating process is maintained all through the bushing's lifespan, making these components perfect for applications where normal upkeep is challenging or impractical.

​​​​​​​

The Science Behind Self-Lubricating Bronze Bushings

Bronze bushing self lubricating technology is a testament to innovative engineering in the field of tribology. These bushings leverage the unique properties of bronze alloys and advanced manufacturing techniques to create a component that can operate efficiently with minimal external intervention.

Material Composition and Structure

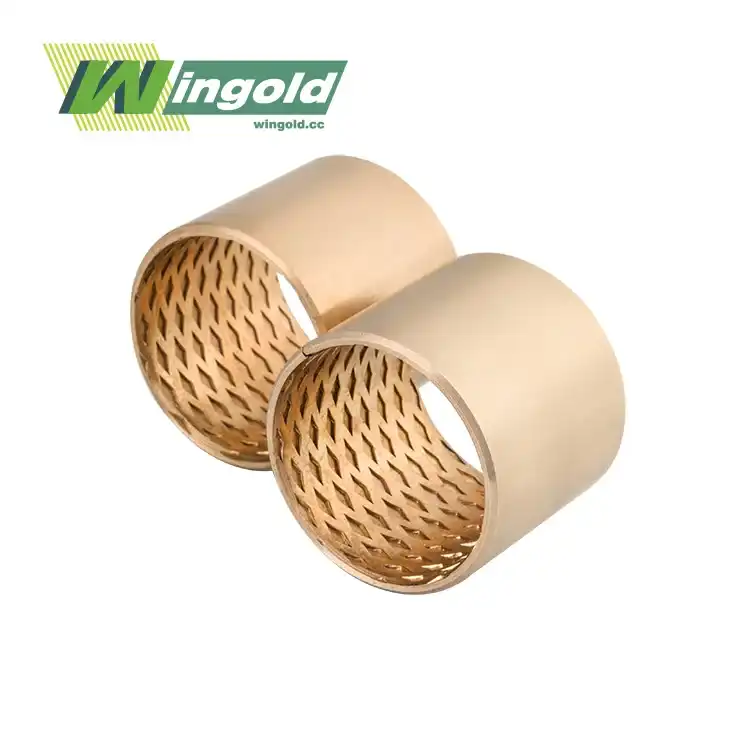

Self-lubricating bronze bushings are typically composed of a high-density copper alloy base, frequently CuSn8P0.3 or CuSn6.5P0.1. These alloys give a fabulous adjustment of strength, erosion resistance, and thermal conductivity. The key to their self-lubricating properties lies in the perplexing network of infinitesimal pores or reservoirs made inside the bronze framework amid the manufacturing process.

These bushings are designed with a particular porosity, usually extending from 20% to 30%, which permits them to hold a critical sum of lubricant. The pores are interconnected, forming channels that encourage the development of lubricant throughout the bushing structure. This porosity is accomplished through a sintering process, where bronze powder is compacted and warmed to just underneath its dissolving point, making a solid yet permeable fabric.

Lubricant Impregnation Process

Once the permeable bronze structure is made, it experiences an impregnation process. The bushing is submerged in a shower of liquid grease, ordinarily a blend of waxes, oils, and strong oils like PTFE or graphite. As the lubricant cools, it is drawn into the pores through capillary activity, filling the organization of channels inside the bronze matrix.

The amount and type of lubricant used are carefully controlled to optimize the bushing's performance for specific applications. Some bushings may contain up to 40% of their volume in lubricant, ensuring a long operational life without the need for external lubrication.

Lubricant Release Mechanism

During operation, as the bushing experiences friction and heat, the lubricant within the pores begins to expand. This expansion creates pressure within the pore network, causing a small amount of lubricant to be released onto the bearing surface. The released lubricant forms a thin film between the bushing and the shaft, reducing friction and wear.

As the bushing cools, the remaining lubricant contracts, creating a slight vacuum effect that draws any excess lubricant back into the pores. This cyclical process of release and reabsorption ensures that the bushing maintains optimal lubrication throughout its operational life, without oversaturating the contact surfaces.

Advantages and Applications of Self-Lubricating Bronze Bushings

The unique properties of bronze bushing self lubricating components make them invaluable in a wide range of industrial and mechanical applications. Their ability to operate without external lubrication offers numerous advantages over traditional bushings.

Maintenance-Free Operation

One of the primary benefits of self-lubricating bronze bushings is their ability to function for extended periods without maintenance. This feature is particularly valuable in applications where regular lubrication is difficult, dangerous, or economically unfeasible. Industries such as food processing, where contamination from external lubricants must be avoided, benefit greatly from these components.

Extended Operational Life

The continuous release of lubricant from within the bushing structure significantly reduces wear on both the bushing and the mating shaft. This results in a longer operational life compared to traditional bushings that rely on external lubrication. Self-lubricating bronze bushings can often outlast their conventional counterparts by a factor of two or more, depending on the application.

Environmental Resilience

Self-lubricating bronze bushings exhibit remarkable performance across a wide range of environmental conditions. They can operate effectively in temperatures ranging from -40°C to +150°C, making them suitable for both cryogenic and high-temperature applications. Additionally, these bushings are resistant to contamination from dust, dirt, and moisture, as the self-lubricating mechanism helps to seal out external particles.

Load Capacity and Speed Capabilities

Despite their porous structure, self-lubricating bronze bushings offer impressive load-bearing capabilities. High-quality bushings can withstand loads of up to 280 MPa, making them suitable for heavy-duty applications. They also perform well at moderate speeds, with some designs capable of handling sliding speeds up to 2.5 m/s.

Versatility in Application

The combination of self-lubrication, high load capacity, and environmental resilience makes these bushings ideal for a diverse range of applications. They are commonly used in hydraulic and pneumatic systems, forging and pressing machine tools, plastic machinery, lifting and handling equipment, and various other industrial sectors including automotive, railway, shipbuilding, and aerospace industries.

Optimizing Performance and Selection of Self-Lubricating Bronze Bushings

To maximize the benefits of bronze bushing self lubricating technology, careful consideration must be given to their selection, installation, and operating conditions. Understanding the factors that influence their performance can help engineers and maintenance professionals make informed decisions and ensure optimal functionality.

Proper Sizing and Clearance

Selecting the correct size and maintaining proper clearance between the bushing and shaft is crucial for optimal performance. Self-lubricating bronze bushings are available in a wide range of sizes, with inner diameters typically ranging from 10mm to 200mm and outer diameters from 12mm to 220mm. The length can vary from 10mm to 300mm, allowing for customization to specific application requirements.

The clearance between the bushing and shaft must be carefully calculated to allow for thermal expansion and ensure adequate lubrication. Insufficient clearance can lead to excessive friction and premature wear, while excessive clearance may result in instability and increased noise.

Surface Finish and Hardness Considerations

The performance of self-lubricating bronze bushings is significantly influenced by the surface finish of both the bushing and the mating shaft. A smooth surface finish on the shaft, typically between 0.2 to 0.8 μm Ra, helps to maintain the lubricant film and reduce wear. The hardness of the shaft is also important, with a recommended minimum hardness of 45 HRC to prevent shaft wear and ensure long-term performance.

The bushing itself is usually supplied with a hardness ranging from HB90-120 for standard applications, or HB120-150 for hardened versions designed for more demanding conditions. The choice of hardness depends on the specific application requirements and expected load conditions.

Environmental and Operating Conditions

While bronze bushing self lubricating is designed to operate across a wide temperature range, extreme conditions can affect their performance. It's important to consider the specific environmental factors of the application, including temperature fluctuations, exposure to chemicals or moisture, and potential contamination sources.

For applications with extreme temperatures, specialized bushings with enhanced temperature resistance may be required. Some high-performance self-lubricating bronze bushings can operate in temperatures ranging from -80°C to 200°C, significantly expanding their application potential.

Load and Speed Optimization

The relationship between load and speed is critical in determining the suitability of a self-lubricating bronze bushing for a given application. While these bushings can handle high loads of up to 75 N/mm² and sliding speeds up to 2.5 m/s, it's important to note that the maximum load capacity typically decreases as speed increases.

Engineers must carefully evaluate the PV factor (pressure x velocity) to ensure that the selected bushing can handle the combined effects of load and speed in their specific application. Proper consideration of these factors helps to prevent overheating and excessive wear, ensuring optimal performance and longevity.

Maintenance and Monitoring

Although self-lubricating bronze bushings are designed for maintenance-free operation, regular inspection and monitoring can help identify potential issues before they lead to failure. Periodic checks for unusual wear patterns, noise, or vibration can provide valuable insights into the bushing's performance and help determine when replacement may be necessary.

Conclusion

Bronze bushing self lubricating represents a significant advancement in bearing technology, offering maintenance-free operation, extended lifespan, and exceptional performance across a wide range of applications. By understanding the science behind their self-lubricating properties and carefully considering factors such as sizing, environmental conditions, and load requirements, engineers can leverage these components to enhance the efficiency and reliability of various mechanical systems.

As technology continues to evolve, we can expect further innovations in self-lubricating materials and designs, potentially expanding their capabilities and application range. For those seeking high-quality self-lubricating bronze bushings or looking to explore custom solutions for specific applications, don't hesitate to reach out to industry experts. You can contact Wingold Bearing at info@wingold.cc for more information on their range of self-lubricating bushing products and expert guidance on selecting the optimal solution for your needs.
