Corrosion-Resistant Stainless Steel Flanged Bushings: Built to Last

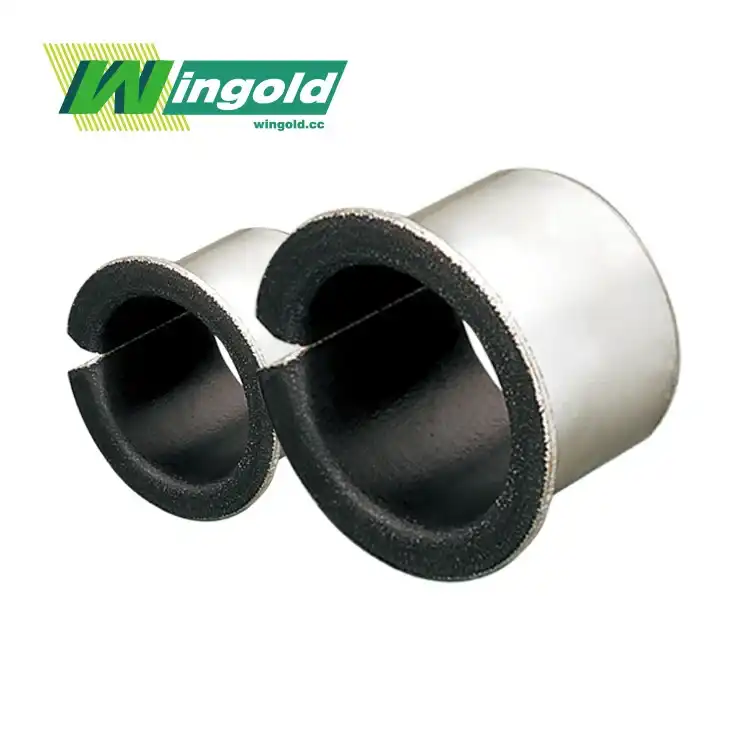

Corrosion-resistant stainless steel flanged bushings are engineered marvels designed for longevity in harsh environments. These robust components feature a unique structure: a stainless steel back, sintered corrosion-resistant alloy powder, and a PTFE (lead-free) layer. This innovative combination offers exceptional resistance to oil, acids, alkalis, seawater, and wear. With their ability to withstand extreme conditions and maintain performance, these bushings have become indispensable in various industries, from food processing to marine applications, ensuring machinery operates smoothly and efficiently for years to come.

The Anatomy of Corrosion-Resistant Stainless Steel Flanged Bushings

Material Composition and Structure

Stainless steel flanged bushings are meticulously crafted to withstand the most challenging environments. The foundation of these bushings is a high-quality stainless steel back, typically made from grades 304 or 316. These grades are renowned for their excellent corrosion resistance and mechanical properties, making them ideal for use in aggressive environments.

Layered atop the stainless steel back is a sintered corrosion-resistant alloy powder. This intermediate layer enhances the overall corrosion resistance of the bushing while providing a robust bond between the steel back and the functional surface. The sintering process creates a porous structure that can be impregnated with lubricants, further improving the bushing's performance and longevity.

The final layer is composed of PTFE (polytetrafluoroethylene), a lead-free material known for its exceptional chemical inertness and low friction properties. This PTFE layer serves as the working surface of the bushing, providing a smooth, low-friction interface that can withstand a wide range of chemicals and temperatures.

Dimensional Specifications and Tolerances

Stainless steel flanged bushings are available in a wide range of sizes to accommodate various applications. The inner diameter can range from as small as 5mm to as large as 100mm, while the outer diameter spans from 8mm to 120mm. The flange diameter, which provides additional support and stability, can measure between 10mm and 150mm.

The length of these bushings is equally versatile, ranging from 10mm to 200mm. This flexibility in dimensions allows engineers to select the perfect bushing for their specific needs, ensuring optimal performance and fit within their machinery or equipment.

Surface finish is another critical aspect of these bushings. With a surface roughness (Ra) ranging from 0.1 to 0.8 μm, these bushings offer exceptionally smooth operation, minimizing friction and wear over time. This level of precision in surface finish contributes significantly to the bushing's overall performance and lifespan.

Performance Characteristics of Stainless Steel Flanged Bushings

Resistance Properties

One of the standout features of corrosion-resistant stainless steel flanged bushings is their impressive array of resistance properties. These bushings excel in environments where standard components would quickly degrade or fail.

Oil resistance is a crucial attribute, allowing these bushings to function reliably in lubricated systems without degradation. This property is particularly valuable in automotive and industrial applications where exposure to various oils and lubricants is common.

Acid and alkali resistance are equally important characteristics. These bushings can withstand exposure to a wide range of pH levels, making them suitable for use in chemical processing plants, wastewater treatment facilities, and other environments where corrosive substances are present.

Seawater resistance is another notable feature, opening up applications in marine environments. From offshore oil rigs to shipbuilding, these bushings provide reliable performance even when constantly exposed to the corrosive effects of saltwater.

Wear resistance complements these chemical resistance properties, ensuring that the bushings maintain their dimensional stability and performance characteristics even under heavy loads and frequent use. This combination of resistance properties makes stainless steel flanged bushings truly built to last.

Load Capacity and Temperature Range

The load-bearing capacity of stainless steel flanged bushings is impressive, with some models capable of handling loads up to 5000N, depending on their size. This high load capacity makes them suitable for use in heavy machinery and equipment where reliability under stress is paramount.

In terms of temperature performance, these bushings demonstrate remarkable versatility. They can operate effectively across a wide temperature range, from as low as -40°C to as high as 250°C. This broad temperature range allows for their use in diverse applications, from refrigeration systems to high-temperature industrial processes.

The ability to maintain performance across such a wide temperature spectrum is a testament to the careful material selection and engineering that goes into these components. The stainless steel back provides structural integrity at high temperatures, while the PTFE layer retains its low-friction properties even in extreme cold.

Applications and Industries Benefiting from Stainless Steel Flanged Bushings

Food and Beverage Industry

In the food and beverage industry, hygiene and corrosion resistance are paramount. Stainless steel flanged bushings find extensive use in food processing equipment, packaging machinery, and beverage production lines. Their resistance to cleaning agents, acids from food products, and ability to withstand high-pressure washing make them ideal for this sector.

These bushings are often used in conveyor systems, mixers, and filling machines. Their smooth surface finish minimizes areas where bacteria could potentially grow, contributing to food safety. Moreover, their wear resistance ensures consistent performance, reducing downtime and maintenance costs in high-volume production environments.

Chemical and Pharmaceutical Industries

The chemical and pharmaceutical industries present some of the most challenging environments for mechanical components. Stainless steel flanged bushings excel in these settings due to their exceptional resistance to acids, alkalis, and various chemical compounds.

In chemical pump valves, these bushings provide reliable operation even when exposed to corrosive fluids. Their use in pharmaceutical machinery ensures contamination-free production processes, as they do not degrade or release particles when exposed to aggressive cleaning agents or pharmaceutical compounds.

Marine and Offshore Applications

The marine industry benefits greatly from the seawater resistance of these bushings. They are used in various shipboard machinery, including winches, cranes, and propulsion systems. In offshore platforms, where exposure to saltwater and harsh weather conditions is constant, these bushings provide long-lasting performance in critical equipment.

Their ability to withstand both corrosion and wear makes them ideal for use in marine steering systems, where reliability is crucial for vessel safety. The low friction properties of the PTFE layer also contribute to smooth operation in these applications.

Textile and Printing Industries

In textile machinery, stainless steel flanged bushings are used in various moving parts exposed to dyes, cleaning agents, and constant moisture. Their corrosion resistance and low friction properties ensure smooth operation of spinning machines, looms, and dyeing equipment.

The printing industry also benefits from these bushings, particularly in high-speed printing presses. Their ability to maintain dimensional stability under high loads and speeds, combined with resistance to inks and cleaning solvents, makes them ideal for this application.

Conclusion

As we've explored the various aspects and applications of corrosion-resistant stainless steel flanged bushings, it's clear that these components play a crucial role in ensuring the longevity and reliability of machinery across numerous industries. Their unique combination of material properties, precision engineering, and versatile performance characteristics make them truly built to last.

For those seeking high-quality stainless steel flanged bushings or looking to explore custom solutions for their specific applications, Wingold Bearing stands ready to assist. With over 15 years of industry experience, state-of-the-art manufacturing facilities, and a commitment to rigorous quality control, Wingold Bearing offers competitive pricing without compromising on quality. To learn more about our products or to discuss your specific needs, please contact us at info@wingold.cc.
