The Advantages of Custom Bronze Bushings in High-Load Scenarios
Superior Load-Bearing Capacity
Custom bronze bushings excel in high-load applications due to their exceptional load-bearing capacity. The unique properties of bronze alloys, such as high compressive strength and excellent fatigue resistance, allow these bushings to withstand immense forces without deformation or failure. By utilizing specialized alloy compositions like SAE 660 (CuSn10Pb10) or SAE 863 (CuSn8), manufacturers can tailor the bushing's properties to meet specific load requirements.
The ability to customize the size, shape, and wall thickness of bronze bushings further enhances their load-bearing capabilities. With inner diameters ranging from 3mm to 500mm and outer diameters up to 600mm, these components can be designed to accommodate a wide variety of shaft sizes and load distributions. This flexibility allows engineers to optimize the bushing's performance for each unique application, ensuring maximum efficiency and reliability.
Enhanced Wear Resistance and Durability
One of the key factors that make custom bronze bushings ideal for high-load applications is their outstanding wear resistance. Bronze alloys possess inherent self-lubricating properties, which significantly reduce friction between moving parts. This self-lubrication characteristic not only minimizes wear but also extends the operational life of both the bushing and the mating components.

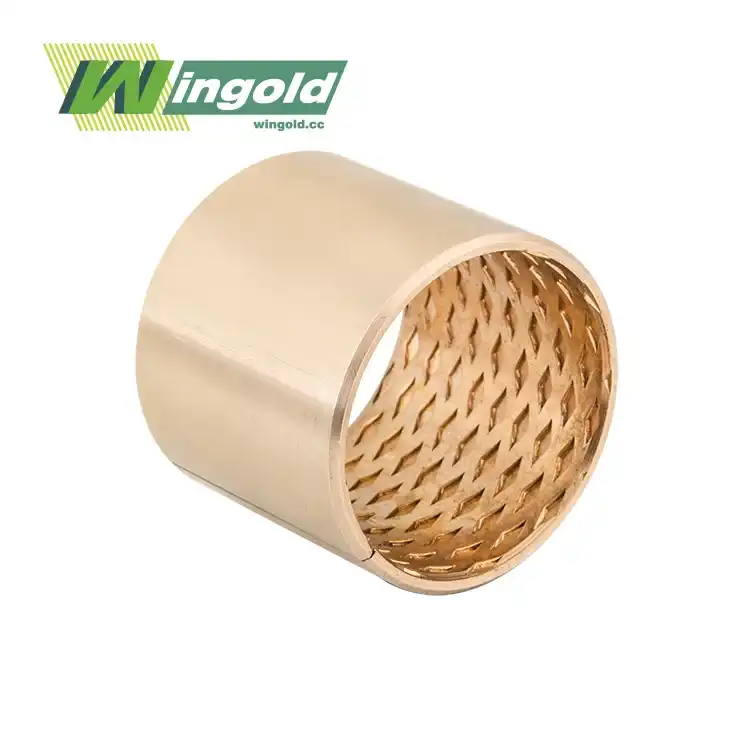

Furthermore, the surface of custom bronze bushings can be engineered to include specialized features that enhance their durability. For instance, diamond or hemispherical oil holes and oil grooves can be incorporated into the design, improving lubrication distribution and heat dissipation. These features contribute to a more stable operating environment, reducing the rate of wear and prolonging the bushing's service life even under extreme conditions.
Thermal Management and Corrosion Resistance
High-load applications often generate substantial heat, which can lead to premature component failure if not properly managed. Custom bronze bushings address this challenge through their excellent thermal conductivity. Bronze alloys efficiently dissipate heat, preventing localized hot spots and maintaining a more uniform temperature distribution across the bearing surface.
Additionally, bronze bushings offer superior corrosion resistance compared to many other bearing materials. This property is particularly valuable in applications exposed to harsh environmental conditions or corrosive substances. The inherent corrosion resistance of bronze alloys such as C90300 (Tin bronze) ensures that the bushings maintain their structural integrity and performance characteristics over extended periods, even in challenging industrial environments.
Customization Options for Optimized Performance
Alloy Selection and Composition
One of the most significant advantages of custom bronze bushings is the ability to select and modify alloy compositions to suit specific application requirements. Different bronze alloys offer varying combinations of strength, hardness, ductility, and wear resistance. For instance, high-lead bronze alloys like C93200 provide excellent embedability and conformability, making them ideal for applications with misalignment or heavy shock loads.
By carefully selecting the appropriate alloy composition, manufacturers can optimize the bushing's performance characteristics. This may involve adjusting the percentages of copper, tin, lead, or other elements to achieve the desired balance of properties. The ability to fine-tune the material composition allows for the creation of bushings that excel in specific operating conditions, whether it's high-temperature environments, applications with frequent start-stop cycles, or those requiring maximum load-bearing capacity.
Surface Treatments and Coatings
Custom bronze bushings can be further enhanced through various surface treatments and coatings. These processes can improve wear resistance, reduce friction, or provide additional protection against corrosion. Common surface treatments include:
- Burnishing: This process creates a smooth, polished surface that reduces friction and improves running-in characteristics.
- Shot peening: By inducing compressive stresses on the surface, shot peening enhances fatigue resistance and durability.
- PTFE coating: Applying a thin layer of PTFE (polytetrafluoroethylene) can significantly reduce the coefficient of friction and improve dry-running capabilities.
These surface modifications allow custom bronze bushings to be tailored for optimal performance in specific operating conditions, further extending their versatility in high-load applications.
Groove and Hole Patterns
The incorporation of specialized groove and hole patterns in custom bronze bushings plays a crucial role in their performance under high-load conditions. These features serve multiple purposes:
- Improved lubrication: Strategic placement of oil grooves and holes ensures efficient distribution of lubricant across the bearing surface, reducing friction and wear.
- Enhanced heat dissipation: Grooves can act as channels for heat transfer, helping to maintain optimal operating temperatures.
- Debris evacuation: Properly designed groove patterns can facilitate the removal of wear particles and contaminants, preventing premature failure.
By customizing these patterns based on the specific requirements of each application, engineers can optimize the bushing's performance and longevity. This level of customization is particularly valuable in applications where traditional bearing designs may fall short.
Applications and Industry Impact
Diverse Industrial Applications
Custom bronze bushings have found widespread use across numerous industries, revolutionizing high-load applications in various sectors. Some key areas where these components have made a significant impact include:
- Heavy machinery and construction equipment
- Automotive and aerospace industries
- Mining and material handling equipment
- Marine applications and shipbuilding
- Industrial manufacturing and machine tools
In each of these areas, custom bronze bushings have empowered the improvement of more effective, solid, and tough apparatus. Their capacity to withstand extraordinary loads, stand up to wear, and work in challenging situations has made them irreplaceable components in present day mechanical plan.
Performance Improvements and Cost Savings
The adoption of custom bronze bushings in high-load applications has led to substantial performance improvements and cost savings for many industries. By replacing traditional bearing materials with optimized bronze solutions, companies have experienced:
- Increased equipment uptime and productivity
- Reduced maintenance frequency and associated costs
- Extended machinery lifespan
- Improved energy efficiency due to reduced friction
- Enhanced safety through more reliable operation
These benefits have not only improved the bottom line for many businesses but have also contributed to more sustainable and efficient industrial practices.
Future Trends and Innovations
As technology continues to advance, the field of custom bronze bushings is poised for further innovation. Emerging trends in this area include:
- Integration of smart sensors for real-time performance monitoring
- Development of new alloy compositions with enhanced properties
- Adoption of advanced manufacturing techniques like 3D printing for complex geometries
- Exploration of hybrid materials combining bronze with other high-performance substances
These advancements guarantee to encourage grow the capabilities of custom bronze bushings, empowering them to meet the ever-increasing requests of high-load applications over different businesses.
Conclusion
Custom bronze bushings have undeniably revolutionized high-load applications, offering unparalleled performance, durability, and efficiency. Their ability to be tailored to specific requirements through alloy selection, surface treatments, and design features makes them invaluable components in modern machinery. As industries continue to push the boundaries of what's possible in terms of load-bearing and operational demands, custom bronze bushings will undoubtedly play a crucial role in enabling these advancements.
For those seeking to optimize their high-load applications with custom bronze bushings, Jiashan Wingold Bearing Co., Ltd. offers expert solutions tailored to your specific needs. To learn more about how our custom bronze bushings can revolutionize your industrial applications, please contact us at info@wingold.cc.
